TOP ALUMINUM FABRIC STRUCTURE FOR INDUSTRIAL
TOP ALUMINUM FABRIC STRUCTURE FOR INDUSTRIAL
| Availability: | |
|---|---|
| Quantity: | |
MPT10
LP Structure
10m

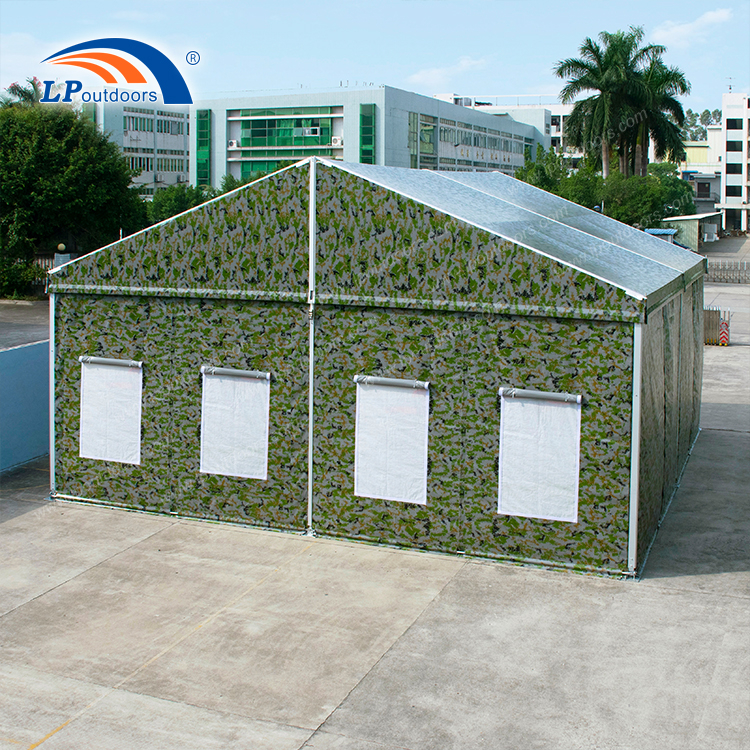

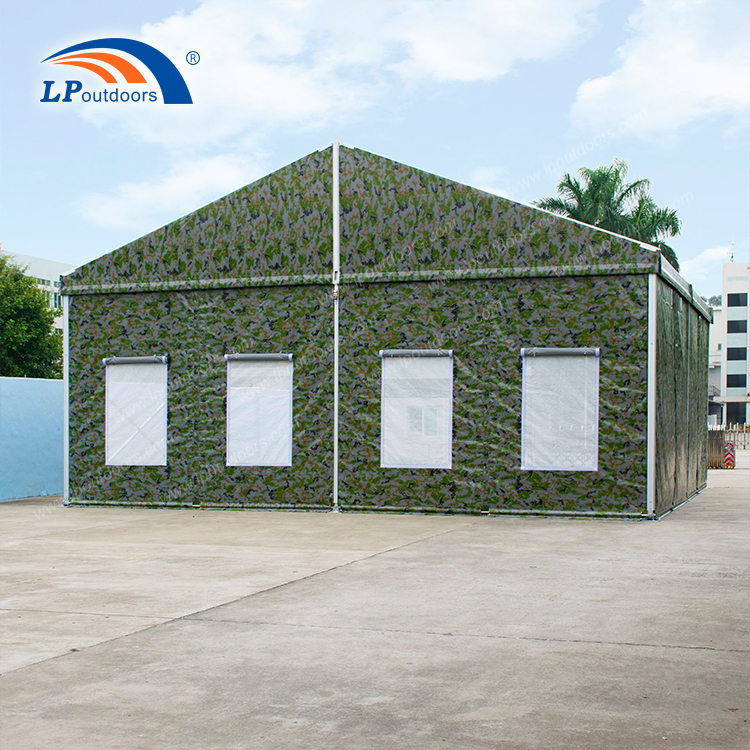

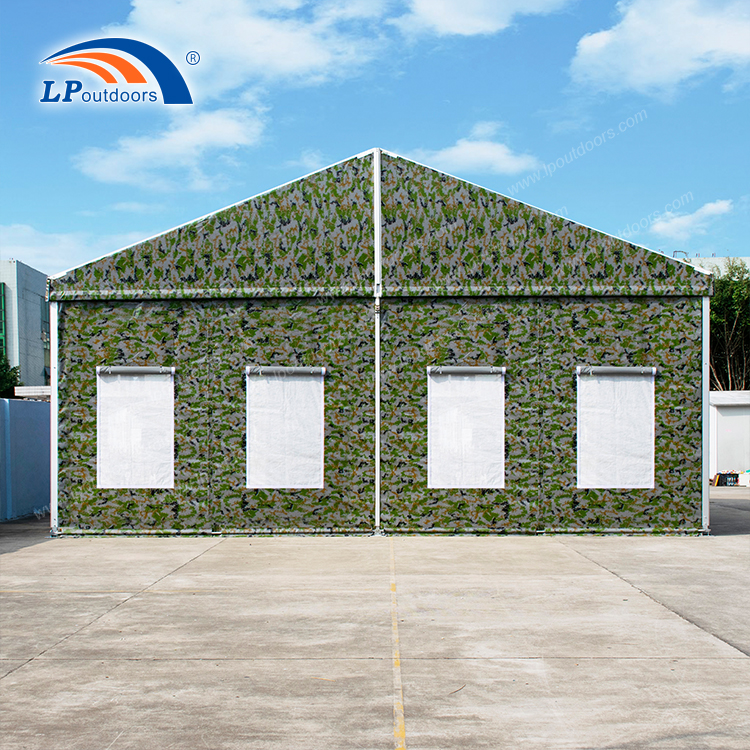

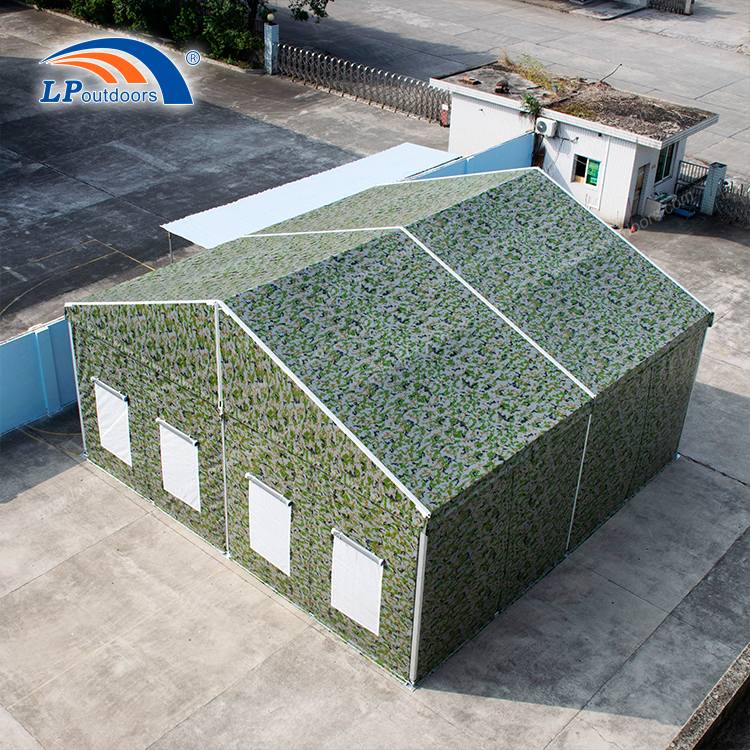

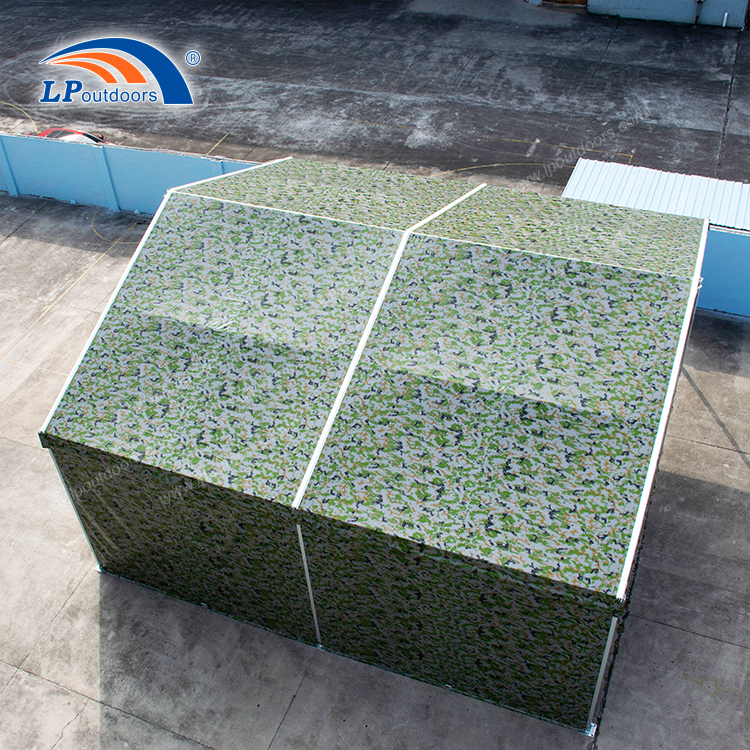

Our 10m Camouflage Military Storage Tent is specifically designed to meet the rigorous demands of military defense, emergency response, and tactical logistics. Built with high-strength extruded aluminum alloy and heavy-duty military-grade PVC covers, it offers a fast, flexible, and robust alternative to permanent concrete structures.
10m Clear-Span Interior: 100% unobstructed internal space allows easy maneuvering of military vehicles, forklifts, and heavy equipment.
Tactical Camouflage Pattern: Specialized camouflage fabric integrates seamlessly into natural field environments for optimal concealment.
Rapid Deployment & Modular Assembly: Prefabricated modular design enables quick setup, expansion, or relocation during time-sensitive field operations.
All-Weather Resistance: Engineered to withstand strong winds, heavy rain, UV radiation, and severe climate conditions with flame-retardant certification.
Heavy-Duty Construction: Built with hard-pressed extruded aluminum alloy (6061/T6) frame and reinforced sidewall panels for long service life.
Tactical Command Hubs & Operations Centers
Field Ammunition, Supply & Equipment Warehouses
Military Vehicle & Heavy Machinery Garages
Temporary Field Hospitals & Emergency Relief Centers
Disaster Recovery & Defense Training Camps
To adapt to complex tactical environments, LP Structure provides custom accessories including industrial ventilation windows, heavy-duty roller shutter doors, modular flooring systems, and integrated HVAC units.
Contact our engineering team to receive detailed specs, CAD drawings, and factory-direct pricing for your military shelter project.

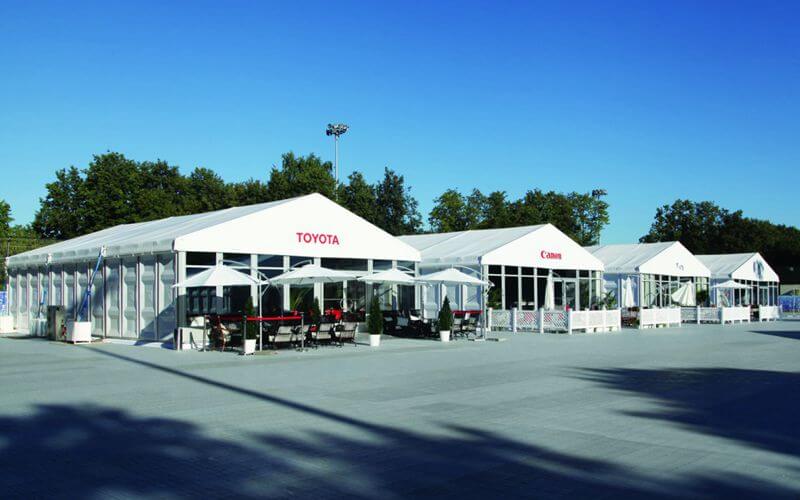

Specification Of 3-12m Small Party Tent
Weather can be the unexcepted and unavoidable situation during any outdoor events. To make your event can be held smoothly, a reliable aluminum tent will be the perfect solution. All of LP Structure' tent structures are made with stainless hard pressed aluminum alloy and waterproof PVC fabric.If you want to know more about the specification, please read this article.
About The Model

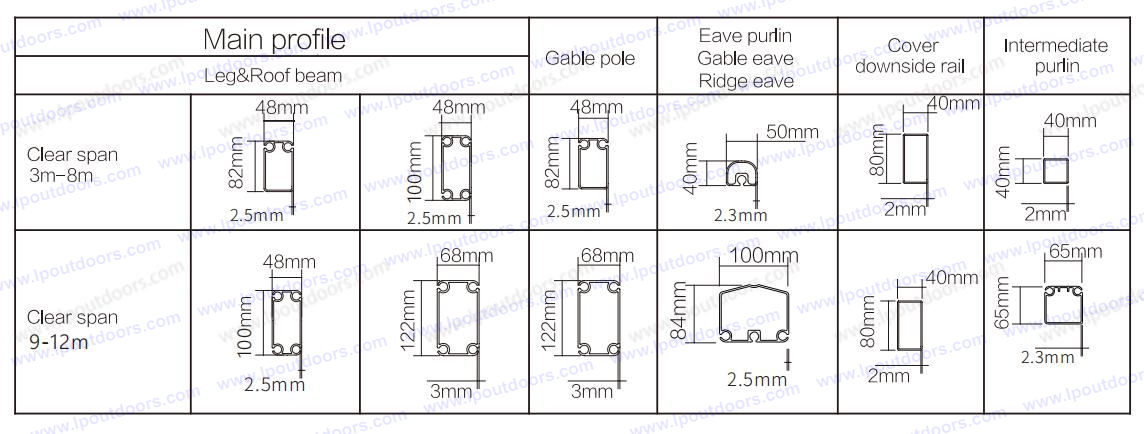

About The Main Profile

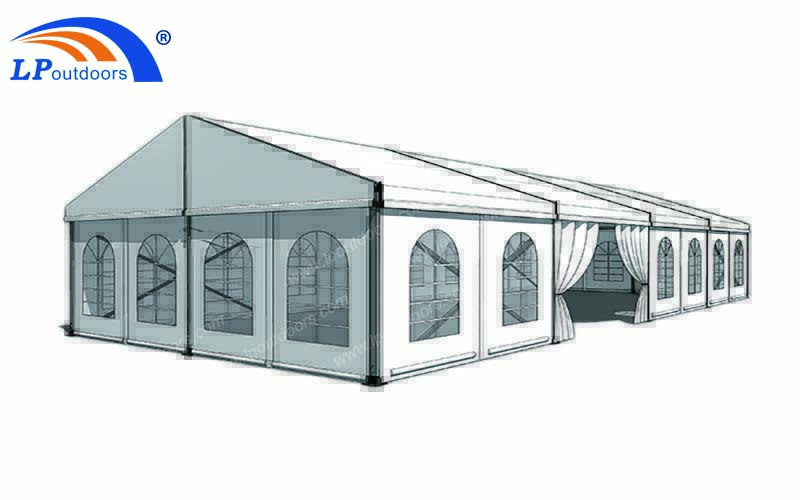

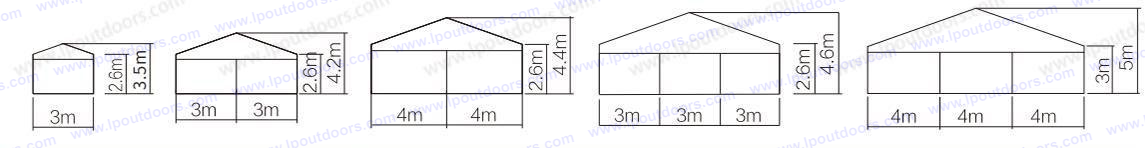

About Details Of 6-12m Small Party Tent
| Item | Spec | |||
| Clear Span (With) | 3m | 6m | 8m | 9-12m |
| Side Height | 2.6m | 2.6m | 2.6m | 3m |
| Ridge Height | 3.5m | 4.2m | 4.4m | 4.6-5m |
| Longest Component | 6m | 6m | 6m | 6m |
| Roof Pitch | 21° | 21° | 21° | 21° |
| Bay Distance | 3m | |||
| Minimum Length | 3m | |||
| Maximum Length | No Limited | |||
| Max. Allowed Wind Speed | 80·100KM/H(USA stanard: 50~60miles per hour) | |||
| Eave Connection | Galvanized steel insert | |||
| Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | |||
| Cover Material | Double Coated Polyester Textile,650g-850g/m2 Flame Retardant to DIN4102 B1,M2 | |||
| Optional Accessories | PVC Window,Glass door,Anchoring,Rain Gutter, ABS wall, Sandwich Wall System, Glass Walling System, Lining And Curtain, Flooring System, Weight Plate | |||

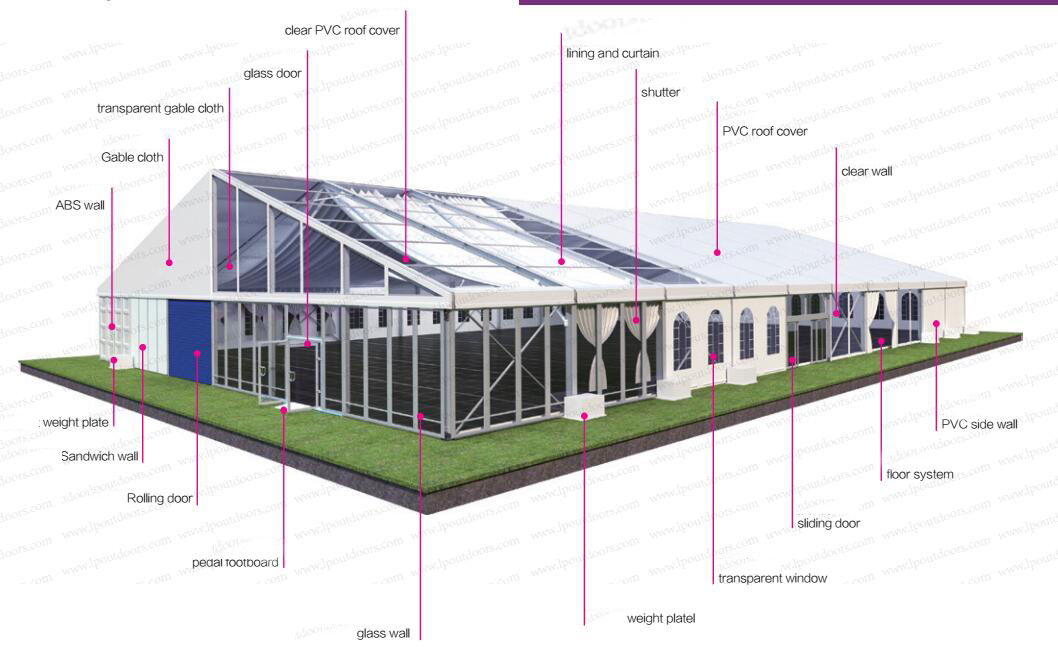

About The Optional Accessories

About the Practical Using

What's more
If there is no specification you want to see, please contact us to know more specification.
How to Rapid Deploy 10m Camouflage Tent
