An indoor pool enclosure has to manage far more than rain. Warm water continually feeds moisture into the air, swimmers disturb chlorinated water, and hard surfaces reflect voices and whistles. If the envelope, airflow, coatings, and acoustic treatment are designed separately, condensation and echo soon expose the gaps. A better solution treats the pool hall as one environmental system from the first layout drawing.
Pool air is both humid and chemically demanding. Chloramines can leave the water and collect near the surface when fresh air and exhaust are inadequate. That same warm, moisture-laden air reaches frames, fasteners, doors, ducts, and cold envelope surfaces, where condensation can keep components wet and accelerate deterioration.
Well-planned tents for swimming pools therefore need an envelope strategy, not a generic event-tent specification. The project team should model the water surface, occupancy, outdoor climate, normal operation, and meet-day peaks. These inputs determine dehumidification load, ventilation, air distribution, insulation, and the places where protective finishes must remain continuous.
An aluminum frame removes the rust mechanism associated with exposed carbon steel. Aluminum develops a protective oxide layer and offers a practical advantage in humid environments, while modular bolted construction also avoids routine site welding. LP Structure uses aluminum-alloy frames for modular pool enclosures and can integrate walls, lighting, HVAC, and ventilation around a clear-span activity area.
Material selection does not end with the main profile. Fasteners, inserts, brackets, doors, and suspended equipment need finishes compatible with the pool atmosphere and with adjacent metals. Designers should isolate dissimilar metals where required, avoid pockets that hold condensate, and keep inspection access around joints. A durable frame can still be undermined by one unprotected connector.
Protective coatings should be specified by substrate, surface preparation, primer, finish coat, thickness, curing conditions, and repair method. Pool-side products also need documented suitability for high humidity and airborne chemicals. Edges, drilled holes, cut ends, welds on secondary steel, and field damage deserve explicit touch-up instructions because discontinuities are where corrosion commonly begins.
Modern swimming pool tents can use double-coated PVC roof and wall membranes, insulated sandwich panels, hard walls, glazing, or double-layer inflatable membrane systems. The correct assembly depends on climate and operating hours. Insulation and vapor control must remain continuous at rails, doors, glazing, and service penetrations so hidden cold bridges do not become wet streaks or concealed corrosion zones.
The CDC Model Aquatic Health Code calls for indoor aquatic envelopes to address condensation under the coldest local design conditions. It also requires coatings used as vapor retarders to meet defined permeability and application criteria. That principle matters for modular halls: a painted surface is not automatically a vapor-control layer, and an acoustic perforation cannot be assumed to stop moisture migration.
Design layer | Question to resolve | Verification method |
Primary frame | Can the material and joints tolerate the pool atmosphere? | Material schedule, connection details, inspection access |
Protective coating | Is the system continuous at edges and repairs? | Preparation standard, dry-film record, touch-up plan |
Envelope | Where will surface temperature fall below dew point? | Hygrothermal review and thermal-bridge details |
Acoustic finish | Will absorption survive humidity and cleaning? | Product data, fixing detail, maintenance access |
Dehumidification alone does not guarantee good pool air. The CDC recommends moving fresh air across the water toward exhaust and removing chloramine-polluted air outdoors. ASHRAE likewise emphasizes air delivery at the deck and water level, high and low returns, and exhaust placement that captures pollutants before they spread through the hall.
Air speed at the water surface needs restraint because excessive movement increases evaporation. Supply air should instead wash vulnerable glazing and envelope surfaces while the exhaust system controls the near-water contaminant zone. The occupied pool room should also remain appropriately negative to adjacent spaces so moisture and odor do not migrate into changing rooms or offices.
A useful commissioning checklist includes:
· Verify supply, return, and exhaust airflow in normal and peak-occupancy modes.
· Check dew-point risk at frames, glazing, doors, corners, and roof-wall junctions.
· Confirm that exhaust air cannot short-circuit into outdoor-air intakes.
· Record humidity, pressure, and combined-chlorine indicators during occupied operation.
· Inspect coatings, seals, fixings, and acoustic panels after the first operating season.

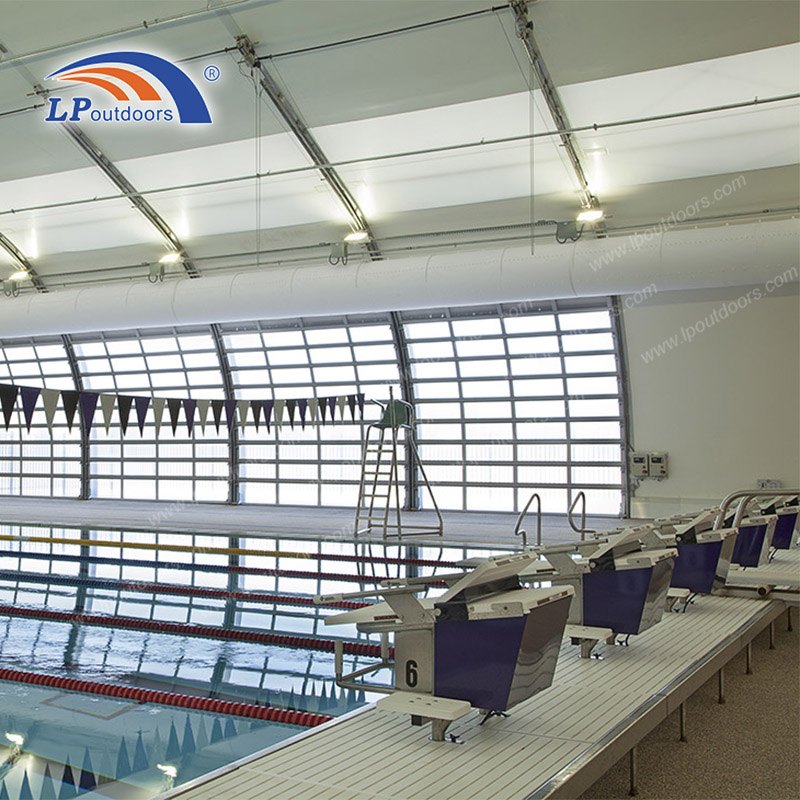

A swimming pool cover tent can create a large clear-span volume, but water, glazing, hard decks, and membrane surfaces reflect sound. Reverberation makes coaching, public-address messages, and emergency instructions harder to understand. The remedy is distributed absorption, not one decorative panel at the far end of the hall.
Moisture-resistant acoustic baffles, perforated liners with absorptive backing, or suitable wall panels can reduce reflected energy when they are positioned across the room. Products must tolerate humidity, cleaning, and the pool atmosphere, and they must not interrupt the envelope's vapor-control layer. The acoustic consultant should predict reverberation, then confirm performance after HVAC noise and occupied use are considered.
The strongest indoor pool solution coordinates structure, coatings, envelope, HVAC, and acoustics around the same operating model. Aluminum framing lowers rust exposure, but connection compatibility and maintenance still matter. Insulation and vapor control limit condensation, while correctly placed supply and exhaust air manage humidity and chloramines. Distributed, pool-suitable absorption then controls echo without compromising the moisture barrier.
For a project-specific enclosure layout, wall system, and integration brief, contact LP Structure with the pool dimensions, water temperature, occupancy profile, local climate, required operating season, and target acoustic performance.
No. Aluminum avoids ordinary steel rust and has a protective oxide layer, but connectors, secondary metals, fasteners, and damaged finishes still need compatible materials, drainage, inspection, and maintenance.
Sometimes, but not in every climate or operating pattern. The design team should model evaporation, weather, occupancy, and heat recovery before selecting ventilation-only, refrigeration, chilled-water, or combined control.
Exhaust should capture moisture and chloramine-rich air near the source without pulling excessive air across the water. Final grille positions and airflow rates require a qualified HVAC design.
No. A membrane enclosure can still be highly reverberant because water, decks, walls, and glazing reflect sound. Distributed moisture-resistant absorption should be selected through acoustic modelling.
Commission airflow, pressure, humidity control, drainage, seals, thermal bridges, coating continuity, acoustic installations, controls, and maintenance access under both normal and peak-use conditions.
