TOP ALUMINUM FABRIC STRUCTURE FOR INDUSTRIAL
 |
| Quantity: | |
|---|---|
LPT30
LP Structure
30M/35M/40M/50M

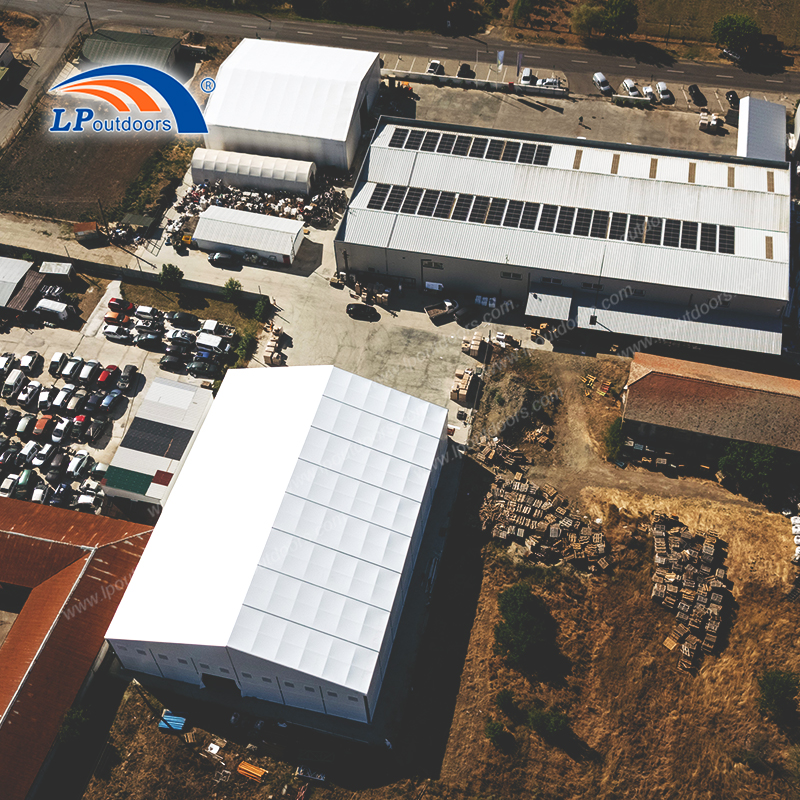

The High Eave Semi-Permanent Aluminum Warehouse is specifically engineered for modern logistics centers, distribution hubs, and industrial facilities that require maximum vertical space for high-bay pallet racking systems. Designed with customizable 8m eave heights, this heavy-duty clear-span structure allows businesses to optimize cubic storage density while ensuring smooth operation for reach trucks, forklifts, and automated material handling equipment.
Built with a high-strength 6061-T6 aluminum alloy frame and durable knife-coated PVC fabric, this modular building delivers rapid deployment, exceptional weather resistance, and long-term semi-permanent performance without the delays or heavy civil costs of traditional steel or concrete construction.
Maximized Vertical Cubic Volume: Exceptional eave height options (6m / 7m / 8m+) provide the necessary vertical clearance to accommodate 4 to 6-tier heavy-duty pallet racking systems, significantly increasing unit storage capacity.
100% Column-Free Interior: The clear-span structural design creates an unobstructed interior space, allowing free movement for Very Narrow Aisle (VNA) forklifts, high-reach trucks, and automated conveyor systems.

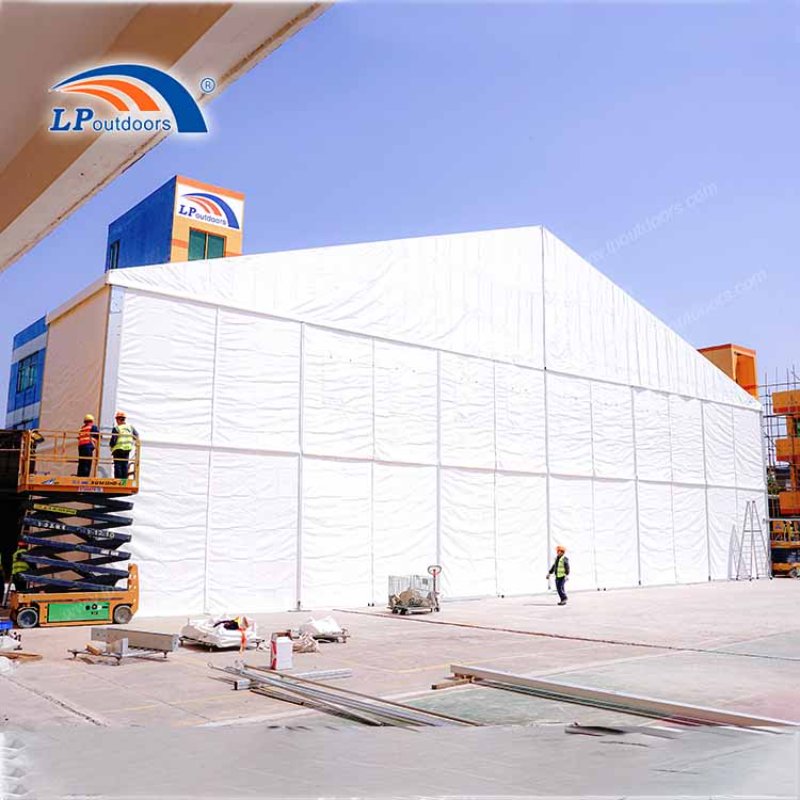

Rapid Deployment & Semi-Permanent Flexibility: Modular components can be quickly pre-fabricated and assembled on-site. Can be anchored directly onto existing asphalt or concrete ground, making it an ideal choice for expanding storage capacity on short notice.
Robust Industrial Construction: Constructed with premium 6061-T6 structural aluminum alloy for main profiles and double-sided knife-coated PVC architectural fabric, offering superior wind load capacity, UV protection, and flame retardancy.

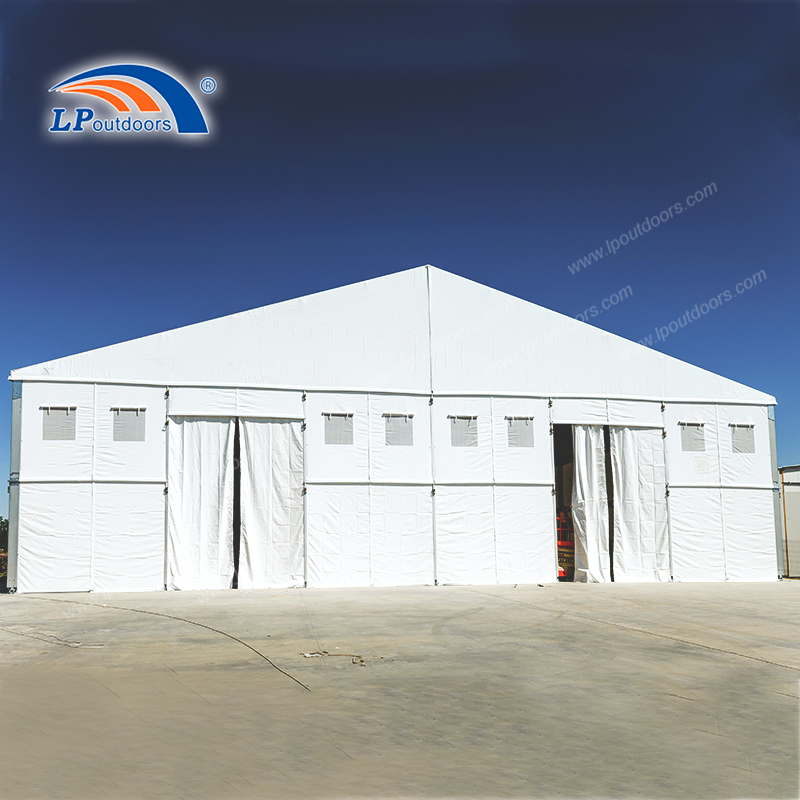

Seamless Industrial Door Integration: Easily integrates with industrial roller shutter doors, dock shelters, dock levelers, or vertical lifting fabric doors for high-frequency freight handling.
Parameter / Feature | Specification Details |
Product Type | High Eave Semi-Permanent Industrial Warehouse |
Main Profile Frame | Hard-pressed Extruded Aluminum Alloy 6061-T6 |
Cover Material | Knife-coated PVC fabric (Waterproof, UV-resistant, Flame Retardant DIN4102 B1/M2) |
Eave Height (Side Height) | 8m (Customizable per racking design) |
Clear Span Width | 10m - 50m (Unlimited length by 3m or 5m modular bays) |
Racking Compatibility | Suitable for 4–6 Tier High-Bay Pallet Racking / VNA Racking Systems |
Wall System Options | Thermal Sandwich Panel Walls, ABS Hard Walls, Heavy-Duty PVC Walls |
Door System Options | Industrial Roller Shutters, Flexible Vertical Lifting Doors, Access Doors |
Wind Load Capacity | Designed to withstand up to 80km/h - 120km/h (Engineered calculation available) |
High-Bay Racking Logistics Centers: High-density pallet storage and distribution centers requiring high vertical clearance.
Industrial Freight Transfer Terminals: Logistics hubs needing fast loading dock integration and continuous forklift operations.
Heavy Machinery & Equipment Storage: High-clearance storage for oversized equipment, automotive manufacturing parts, and raw materials.
Temporary & Semi-Permanent Buffer Warehouses: Flexible storage expansion during peak seasonal inventory demands.
Depending on pallet height and forklift reach clearance, an eave height of 6m to 7m is typically recommended. We can customize the structure height to match your specific racking layout and equipment specs.
Our structures feature structural-grade 6061-T6 extruded aluminum alloy for the main framework and heavy-duty knife-coated PVC fabric for roof covers, ensuring maximum durability and long service life under harsh weather conditions.
No. One of the main advantages of modular aluminum warehouses is that they can be installed on existing asphalt, concrete slabs, or compacted ground using expansion bolts, ground anchors, or weight plates, reducing foundation preparation costs and installation time.
