TOP ALUMINUM FABRIC STRUCTURE FOR INDUSTRIAL
 |
| Quantity: | |
|---|---|
LPT50
LP Structure
50m

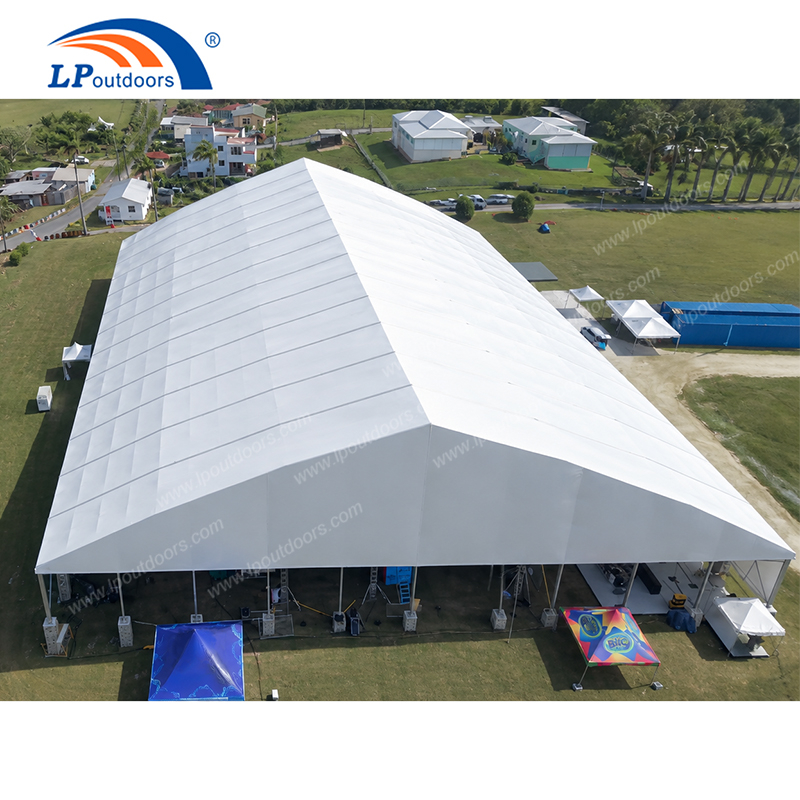

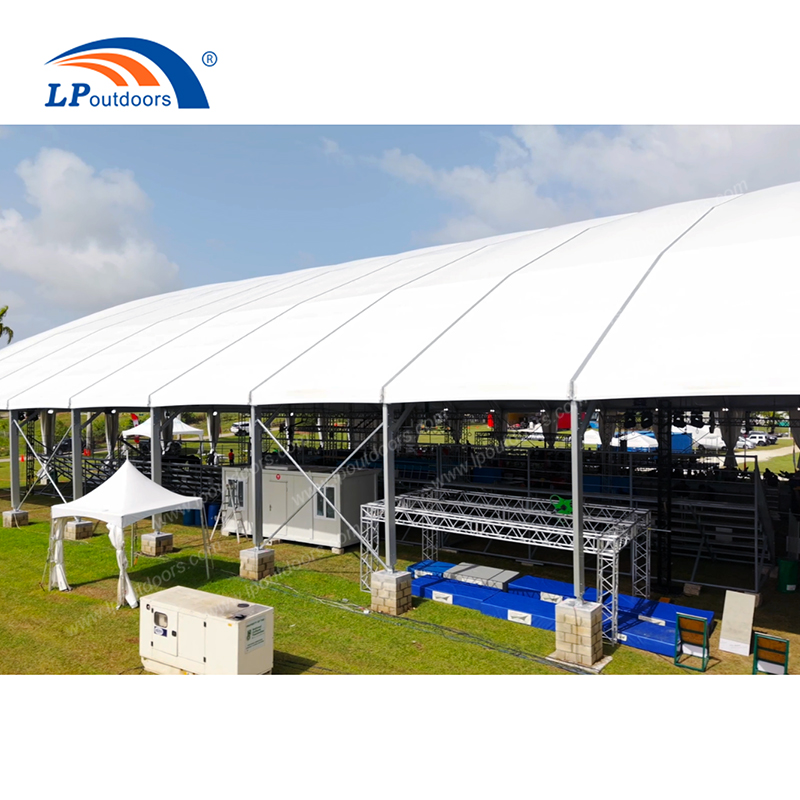

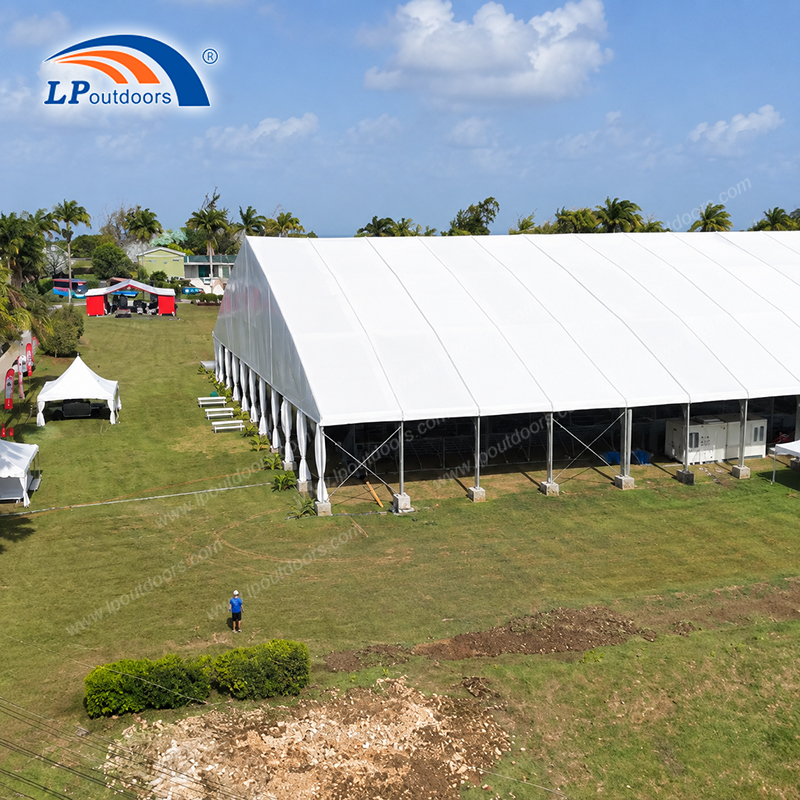

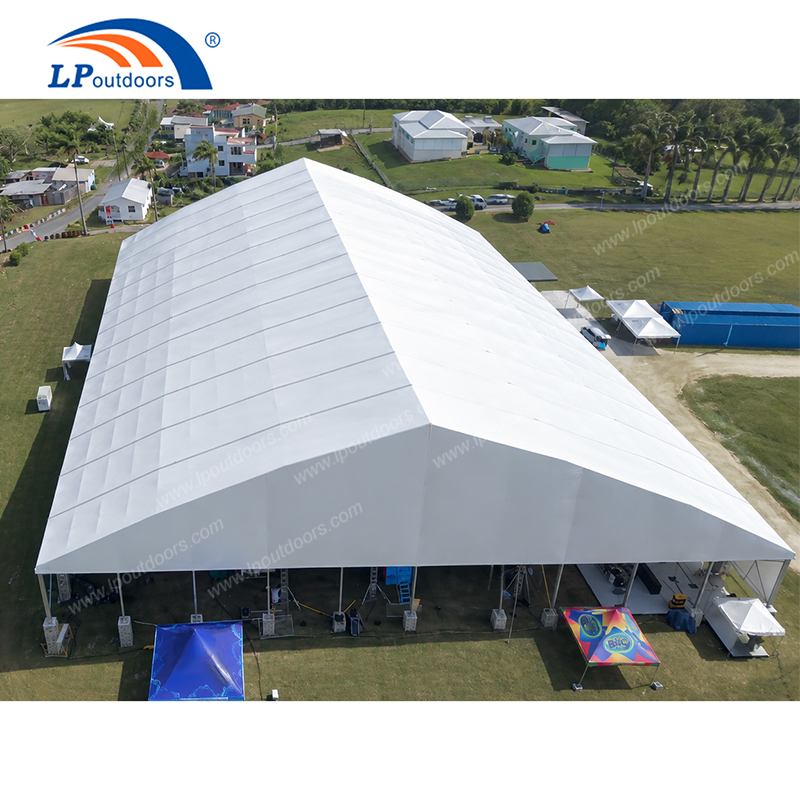

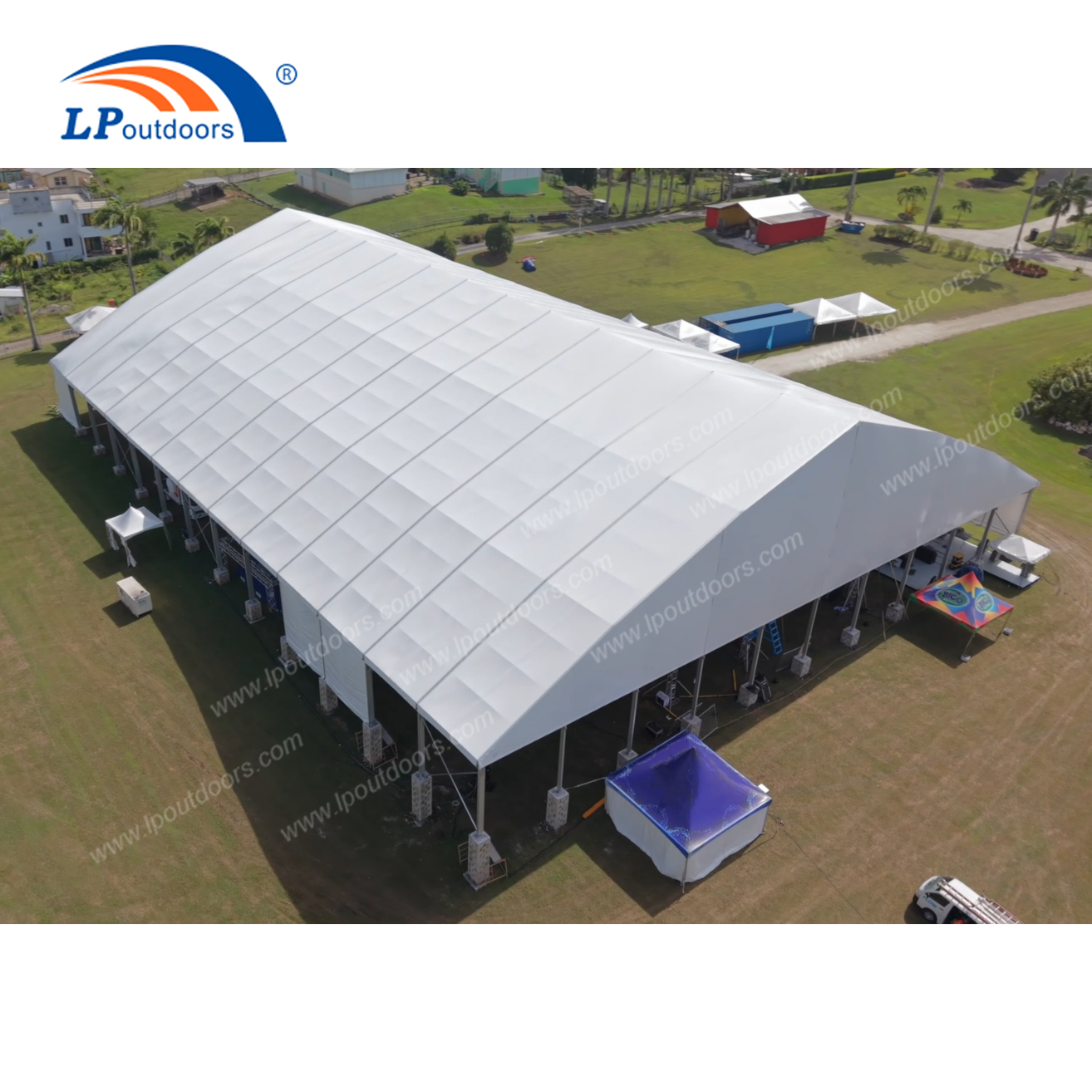

The 50x65m Clear Span Modular Aluminum Arch Structure provides an impressive 3,250 square meters of completely unobstructed, column-free space. Designed with a curved arch roofline, this heavy-duty marquee tent combines high structural strength with a modern aesthetic, making it an exceptional solution for large-scale outdoor venues.
Parameter | Specification |
|---|---|
Clear Span Width | 50m (164 ft) |
Total Length | 65m (213 ft) — expandable in modular bays |
Covered Area | 3,250 m² (approx. 34,980 sq.ft) |
Main Profile Material | High-strength extruded aluminum alloy 6061-T6 |
Fabric Material | Knife-coated PVC textile (850g/m² roof, 650g/m² sidewalls) |
Flame Retardancy | DIN 4102 B1 / M2 / NFPA 701 standard compliant |
Wind Resistance | Up to 100 km/h - 120 km/h (0.5kN/m²) |
Curved Arch Aesthetic: The unique arch profile enhances interior vertical clearance while offering a sleek, premium look for high-end events and commercial showcases.

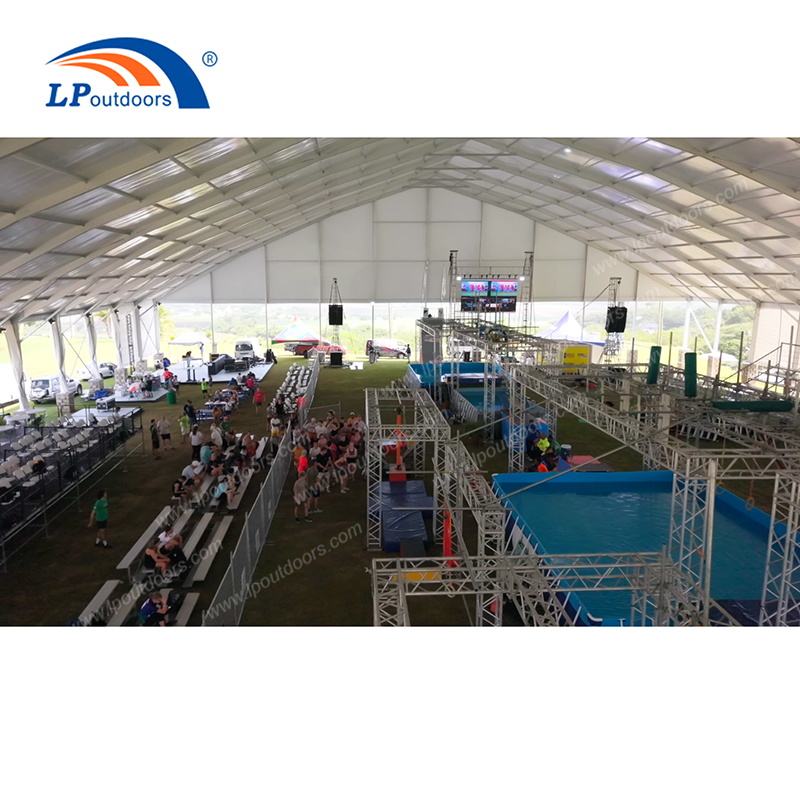

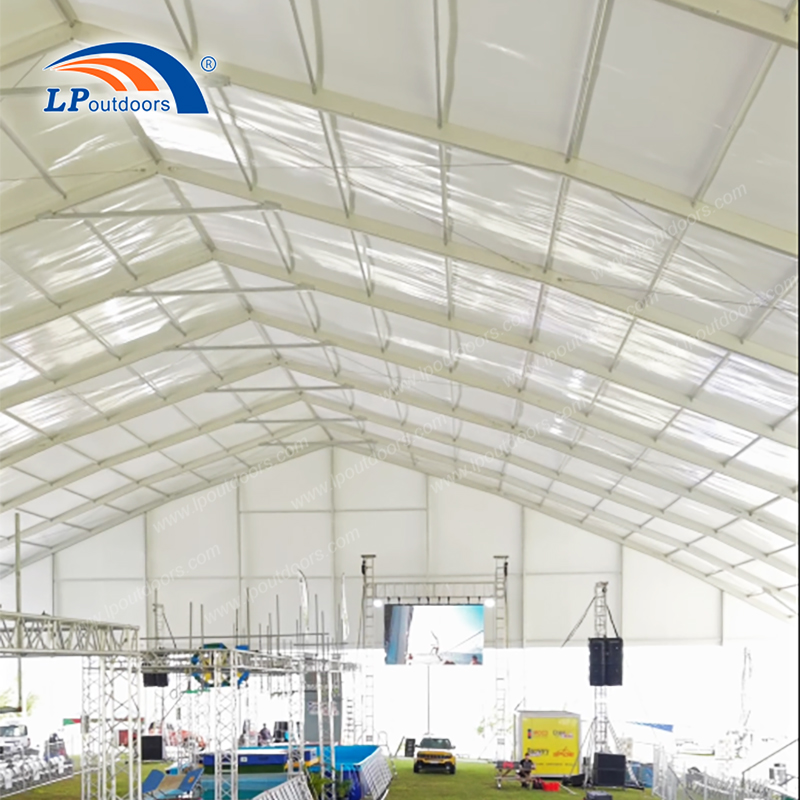

100% Usable Interior Space: Clear-span engineering eliminates internal support pillars, allowing total flexibility for seating, stage setups, booths, and lighting rigs.
Modular & Reusable: Easy to assemble, dismantle, and transport. The modular length can be expanded or reduced in standardized bay increments according to project needs.
Weather Resistance: Built to withstand harsh outdoor conditions, featuring anti-UV, waterproof, mold-resistant, and flame-retardant PVC fabric coverings.
Commercial Exhibitions & Trade Fairs: Expansive floor plan suitable for international trade shows and product launches.
Large Events & Hospitality: Ideal for concert halls, temporary event spaces, and high-capacity assemblies.
Sports Facilities: Great for temporary or semi-permanent indoor sports enclosures like tennis, padel courts, and multi-purpose arenas.
Our modular arch structures can be fixed on virtually any ground type: expandable bolts for concrete floors, steel pegs for grass/soil, or weight plates/ballast blocks for surfaces where drilling is not allowed (such as paved roads or marble floors).
Yes. We use premium double-sided knife-coated PVC synthetic fiber fabric. It meets international fire safety standards including DIN 4102 B1, M2, and NFPA 701. It is 100% waterproof, UV-resistant, tear-resistant, and self-cleaning.
Absolutely. LP Structure offers full customization options, including clear PVC windows, solid ABS walls, sandwich panel walls, glass wall systems, double-wing glass doors, flooring systems, lining decorations, and HVAC integration.
All aluminum frames are packed in protective membrane films, hardware components are secured in wooden cases or steel crates, and PVC covers are packed in durable PVC carry bags to ensure safe international transport via ocean freight.
