TOP ALUMINUM FABRIC STRUCTURE FOR INDUSTRIAL
 |
| Quantity: | |
|---|---|
LPT20
LP Structure
20m, size could be customized

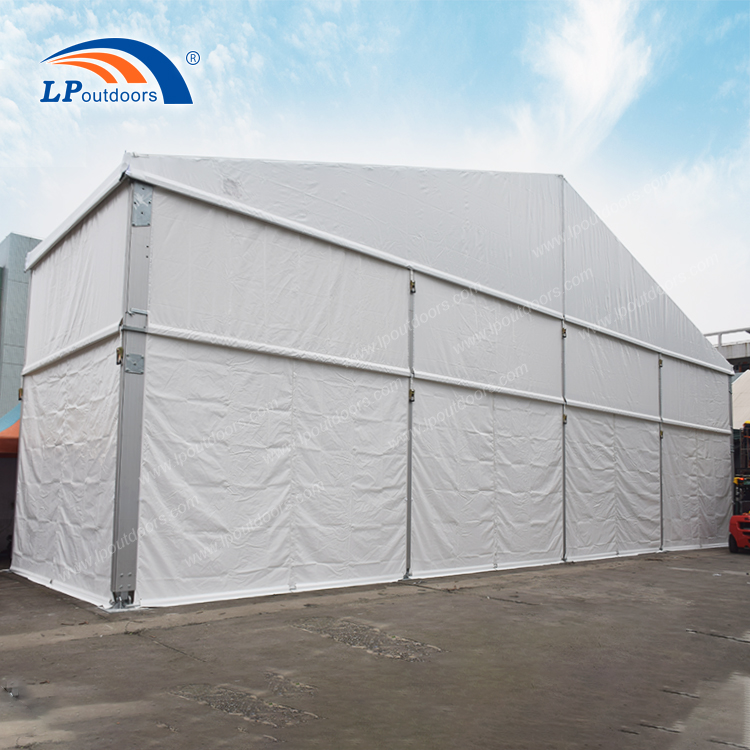

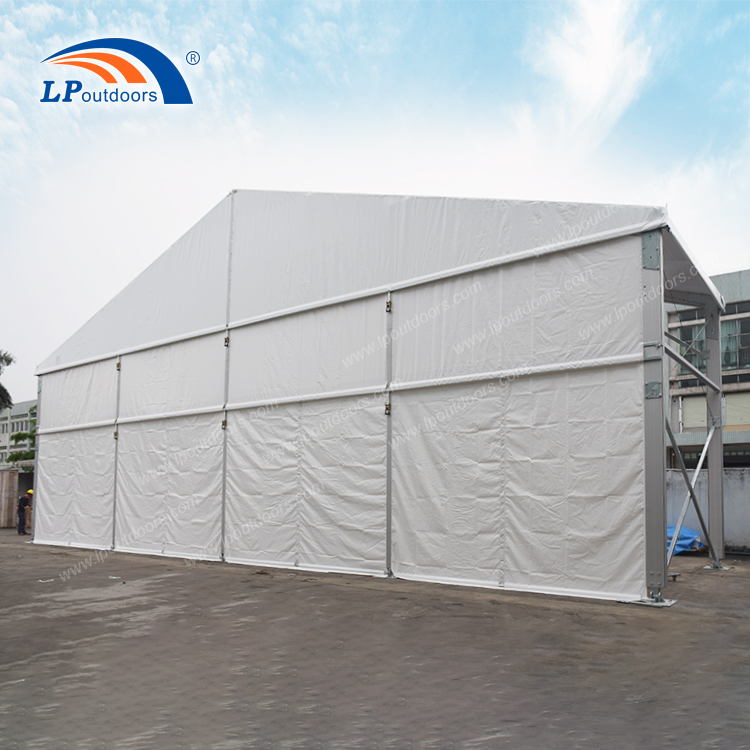

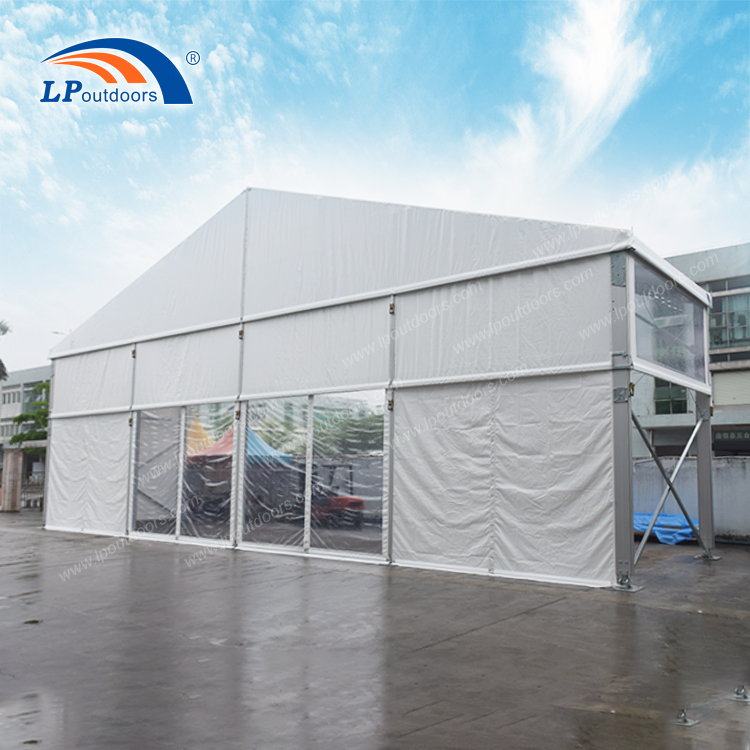

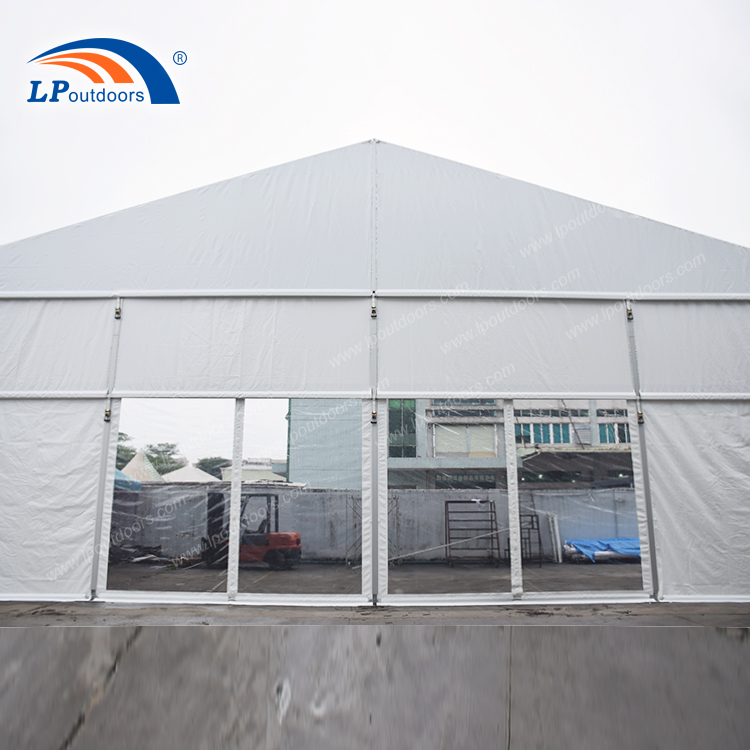

The Heavy-Duty High Clearance Aluminum Warehouse is engineered to provide maximum unobstructed vertical clearance for heavy industrial machinery, oversized equipment storage, and large vehicle operations. Designed with a customizable vertical clearance from 6.0m to 8.0m+, this clear-span modular structure eliminates interior support columns, allowing heavy trucks, cranes, loaders, and specialized equipment to maneuver safely and efficiently inside.
Constructed from structural-grade 6061-T6 aluminum alloy and durable knife-coated PVC fabric, this semi-permanent warehouse offers rapid installation, high wind resistance, and a cost-effective alternative to traditional rigid steel buildings.
Maximum Vertical & Overhead Clearance: Designed specifically with high side walls 6m-8m to ensure safe clearance for high-masted forklifts, heavy excavators, trucks, and overhead lifting equipment.
100% Unobstructed Clear-Span Interior: Zero internal columns mean full utilization of floor space and maximum freedom for vehicle turning, loading, and machinery arrangement.
Heavy-Duty Modular Frame: Manufactured with hard-pressed extruded 6061-T6 aluminum alloy, offering long service life, high structural integrity, and excellent rust resistance in harsh industrial environments.
Flexible Access & Door Systems: Fully compatible with flexible vertical lifting fabric doors (megadoors), industrial roller shutters, or wide sliding doors for large machinery access.
Fast Deployment & Low Foundation Requirements: Can be quickly anchored onto asphalt, concrete slabs, or compacted ground, providing rapid expansion for seasonal inventory or project-based equipment storage.
Parameter / Feature | Specification Details |
Product Category | High Clearance Industrial Warehouse Structure |
Main Frame Material | High-Strength Structural Aluminum Alloy 6061-T6 |
Cover Material | Heavy-duty Knife-Coated PVC Fabric (Waterproof, UV-Resistant, Flame Retardant DIN4102 B1/M2) |
Clearance / Eave Height | 6m (Customizable) |
Clear Span Width | 10m - 50m (33 ft - 164ft, Column-Free) |
Length | Unlimited (Modular expansion in 3m or 5m bay increments) |
Door Compatibility | Vertical Lifting Megadoors, Industrial Roller Shutters, Sliding Doors |
Wall Options | Insulated Sandwich Panels, ABS Hard Walls, Heavy-Duty PVC Fabric Walls |
Wind Load Capacity | Up to 80km/h - 120km/h (Engineered structural calculations provided) |
Heavy Machinery & Equipment Storage: Ideal for storing construction machinery, excavators, agricultural tractors, and mining equipment under cover.
Maintenance & Repair Workshops: High overhead room allows mechanics to work comfortably around large vehicles and elevated platforms.
Logistics & Freight Drive-Through Depots: Wide and high entryways allow semi-trucks and container carriers to enter directly for dry loading/unloading.
Oversized Manufacturing & Assembly Halls: Provides spacious overhead room for large-scale industrial assembly processes.
A high clearance warehouse offers significantly higher side walls 6m to 8m+ compared to standard 4m heights). This provides the vertical clearance required for large machinery, high-masted forklifts, and overhead vehicle operations.
We offer fully integrated industrial access doors, including vertical lifting fabric megadoors, heavy-duty electric roller shutters, and large sliding doors tailored to your clearance requirements.
Yes. Structural-grade 6061-T6 aluminum alloy provides exceptional strength-to-weight ratio, high wind load capacity, and complete rust resistance, making it ideal for multi-year semi-permanent industrial deployment.
