A community field can gain a weather-protected activity space without sacrificing its playing surface. The decisive work happens below the tent: planners must map loads, separate traffic routes, protect turf or court finishes, and define a clean removal sequence. This guide follows that path from survey to final inspection.
A low-impact project treats the field as a protected asset, not as a construction platform. Natural grass can suffer abrasion, compaction, heat, and reduced light under cover, while synthetic turf and coated courts can be marked by point loads or trapped debris. The plan therefore needs a surface-specific protection method before vehicles, ballast, or structural components arrive.
A well-planned sports court structure spreads temporary use across defined zones instead of allowing foot traffic and materials to wander over the venue. The protection layer should extend beneath working areas and access paths, while sensitive irrigation, drainage, seams, and painted lines remain clearly marked. This makes removal and handover measurable rather than subjective.
The pre-installation survey establishes the condition used at handover. Record fixed-view photographs, soft ground, damaged seams, uneven slabs, drains, irrigation heads, underground services, and no-stake zones, then name who can authorize changes. A grid plan gives every observation a location and limits later disputes.
Natural turf remains biologically active during the project, so protection cannot be judged by strength alone. Air, water, temperature, and light conditions beneath the cover matter, and the acceptable coverage period varies with season, grass condition, weather, and local turf management. The venue manager should approve both the flooring system and the maximum cover time rather than relying on a universal duration.
Synthetic turf and coated courts are less sensitive to lost light but still vulnerable to concentrated pressure and abrasion. Remove grit before laying panels, prevent sharp edges from contacting the finish, and keep turning vehicles away from uncovered areas. A separation layer may be appropriate, but it must not block drainage or create an unstable walking surface.
Every load needs an approved route and bearing area. Column feet, ballast, lifts, carts, and pedestrians behave differently, so one lightweight panel cannot protect every zone. Heavy operations may require road mats or load spreaders, while public walkways need secure joints and edge ramps.
The T-01 event protection floor offers a modular option for pedestrian and light-vehicle areas. Its interlocking polypropylene tiles measure 30.48 by 10.16 by 1.8 cm, and 32 pieces cover one square metre. Surface openings and underside space support drainage and airflow, while optional edges reduce trip exposure. Its documented deformation point is 21,513 lbf/ft², but the sub-surface and project load case still need separate approval.
Project zone | Main risk | Protection response |
Public walkway | Repeated foot traffic | Interlocked panels, secured edges, daily joint checks |
Column or ballast point | Concentrated pressure | Engineered spreader or approved decking below the bearing area |
Material route | Dragging and turning loads | Dedicated path, clean panels, controlled movement |
Natural turf | Heat, low light, poor airflow | Perforated system, short approved cover window, turf monitoring |
Many temporary sports buildings can use project-specific ballast where stakes, anchors, or drilled fixings would conflict with underground services or the preservation brief. Ballast is not automatically harmless: its mass still needs a verified bearing area and a protected route into position. Structural calculations, local approvals, wind actions, and the manufacturer's installation design remain mandatory.
A clear-span layout can also reduce contact points within the active court. Keeping primary supports outside play lines preserves circulation and avoids internal columns, but the perimeter must still accommodate footplates, ballast, drainage, emergency egress, and safe access. The tent footprint and the protection plan should therefore be designed together, not issued as separate packages.

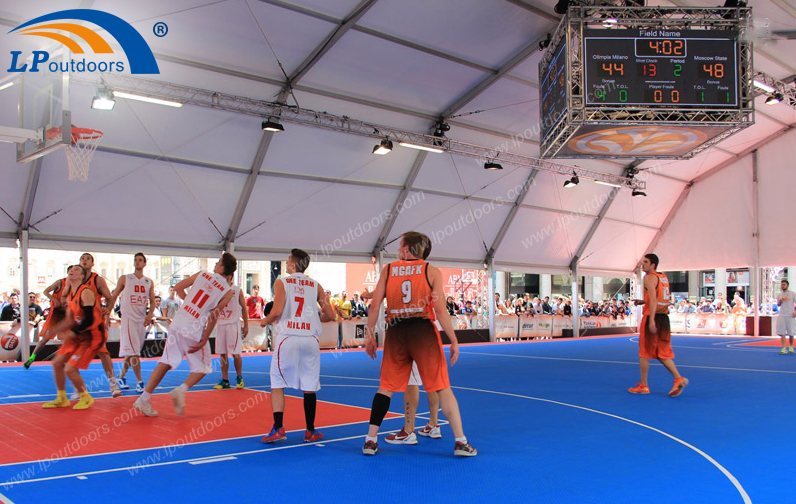

A temporary sports hall succeeds when the installation sequence limits both exposure time and uncontrolled movement. Deliver components to a hardstanding area where possible, lay the approved access route first, and bring materials forward only when crews are ready. This reduces stockpiles on the field and keeps the protection layer available for inspection.
Daily controls should be short enough to use consistently:
· Check panel locks, edges, ramps, and visible settlement before opening the site.
· Remove grit, standing water, loose fasteners, and packaging from traffic routes.
· Keep lifts and vehicles inside their approved paths and turning limits.
· Record weather, turf condition, and any change to ballast or load distribution.
· Stop work when the surface, protection system, or structure falls outside the agreed limits.
The removal plan should reverse the installation logic without concentrating late-stage damage. Clear furniture and loose equipment first, dismantle from protected routes, remove ballast with the same load controls used on arrival, and lift flooring in manageable sections. Cleaning panels away from the field prevents trapped grit and debris from being dragged across the exposed surface.
The final inspection should compare the original survey grid with the uncovered venue. Check turf stress, seams, coating marks, drainage, depressions, loose fasteners, and edge damage, then record any agreed recovery action and responsible party. LP Structure can coordinate a tent and protection-flooring solution around the venue brief, but the turf manager, structural designer, and local authority should approve their respective technical limits.
A damage-conscious community sports project links four decisions: document the starting condition, match protection to the surface and load, control every installation route, and inspect the venue immediately after removal. Modular flooring and non-penetrating support strategies can reduce disruption, but they work only inside an approved schedule and structural plan. The right outcome is a usable temporary venue and a field ready for its next sporting season.
For a project-specific footprint, protection layout, and dismantling sequence, contact LP Structure with the field dimensions, surface type, event duration, expected loads, and local wind requirements.
Can a temporary venue be installed on natural grass without damage?
Risk can be reduced but not eliminated. Use approved breathable protection, limit cover time, distribute loads, monitor turf conditions, and involve the venue's turf manager in the schedule.
Is one flooring type suitable for the whole project?
Usually not. Pedestrian paths, public areas, ballast points, and vehicle routes impose different loads, so each zone needs a protection system matched to its use and sub-surface.
How can a tent be secured where ground penetration is prohibited?
Engineered ballast may be possible when staking or drilling is restricted. Its weight, bearing area, wind design, access route, and local approval must be verified for the specific project.
What information should be recorded before installation?
Record photographs, surface defects, levels, seams, drains, irrigation, underground services, no-stake areas, access routes, and the people authorized to approve site changes.
What should a venue handover inspection cover?
Compare the uncovered field with the initial survey, then check turf stress, depressions, coating damage, seams, drainage, loose fasteners, and any recovery work that needs an owner and deadline.
